Using Merge AI to Suggest Labels
When you upload or create a 3D object with Merge 3D, you can add your own custom multimedia labels.
The new Suggest Labels feature, powered by Merge AI technology, automatically analyzes your 3D model to suggest the best label annotations for the most powerful educational impact. For educators and curriculum specialists, you can even add your specific curriculum standards and focus to ensure the model hits the learning objectives for your students.
Note: The Suggest Labels feature uses AI credits in your account. Learn more about AI Credits Here.
This feature works great alongside the new 3D Learning Modules as well. You can learn more about getting started with 3D Learning Modules here.
How it Works
Merge AI looks at the model from several angles, names parts it can see, and drops a label on each one.
Existing labels already on the object are left as they are. New labels continue the numbering, so if the object already has labels 1 and 2, the first suggestion is 3.
While the suggestions are on screen, you can:
- Edit a label title or description.
- Deselect a suggestion you do not want.
- Select a suggestion in the list or on the model to see its pointer, then click the model to move it.
- Add the selected suggestions, or discard the whole set.
Getting Started
- Sign into dashboard.merge3d.ai.
- Find the object in your library.
- Tap to open your object and select Edit in the upper right corner.
- Then tap the Labels tab.

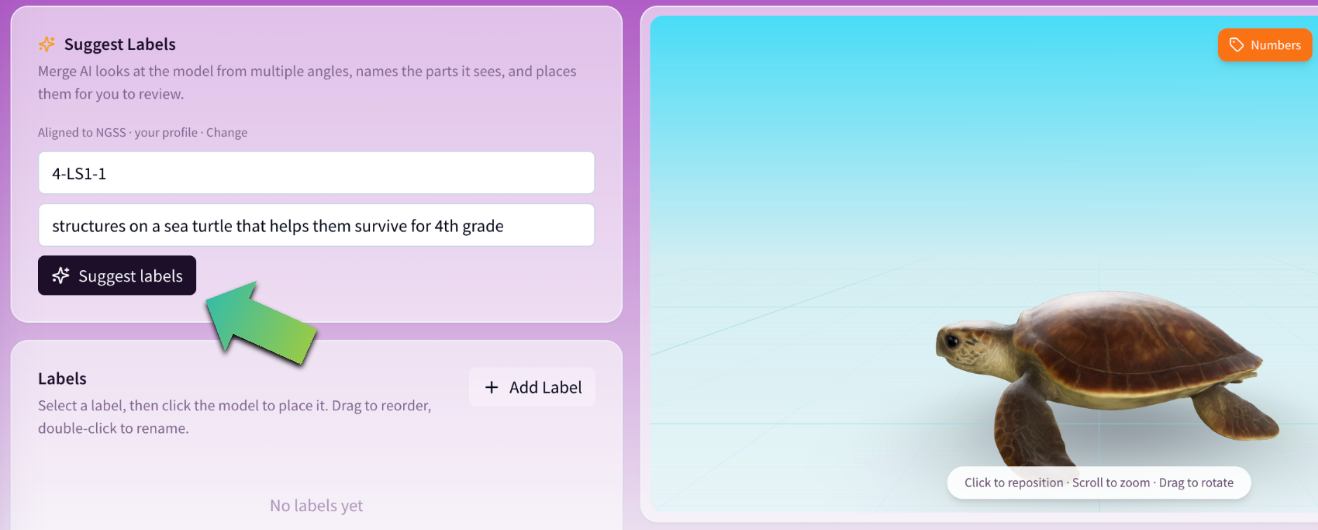

- Under Suggest Labels, you can leave the standard and focus blank, or fill in either one. *See note below about adding the standard and focus.

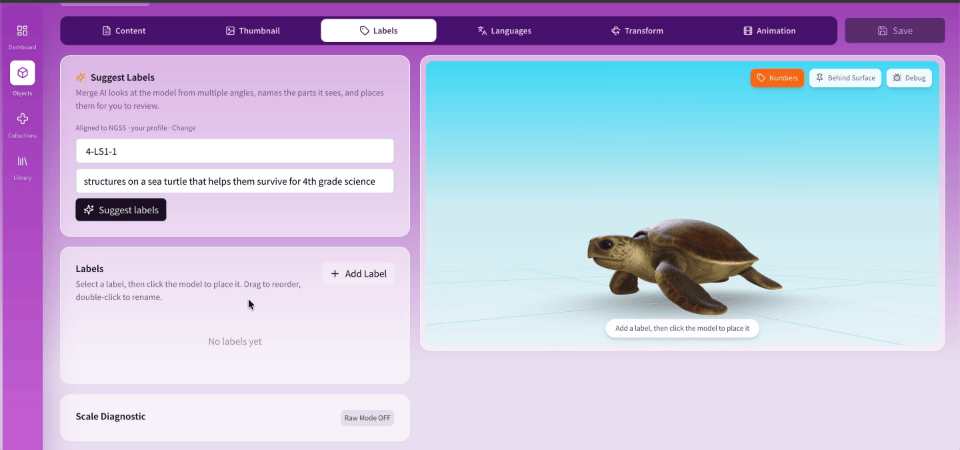

- Click Suggest labels, and wait while the preview turns and the markers are placed. You can click the model during placement to correct a marker.
- Review the amber suggestions. Edit text, untick any you do not want, and select a label to reposition it.
- Click Add to save the ticked labels.
Adding Standards and a Focus
- Standard - Adding a curriculum standard code, such as 4-LS1-1 from NGSS, would then customize the labels to compliment the 4th grade standard to “Construct an argument that plants and animals have internal and external structures that function to support survival, growth, behavior, and reproduction.”
- Focus - Adding a focus is easy, and optional. It’s simply a short note about the lesson topic, such as “structures on a sea turtle that helps them survive for 4th grade.”
- The line above these fields shows the curriculum already set on your profile, school, or account. You can tap Change to update it in your profile settings.
If the Suggest Labels option is missing:
- An account admin may have turned off AI Features for your account.
- You may not have a Merge 3D license type that includes the feature.
- You many not have enough AI credits
If you have questions about using Merge AI to label your own 3D model, AI credits, or anything else Merge related, reach out to support@merge3d.ai so we can help.
